MC1

Its unique electro-mechanical configuration makes it possible to combine different wrapping styles in one machine.
The wrapping style change over is easy and can be completed in very short time, there is no need for any adjustments thanks to precise fixed positions for all size parts.
The intermittent motion of the four-positions wrapping station and the continuous motion of the wrapping material unwinding system are synchronised by special paper grippers patented by M.C. Automations.
It is always possible to convert the MC1 to handle a new wrapping style by replacing the wrapping group, feeding system, and/or the discharge devices according to new production needs.

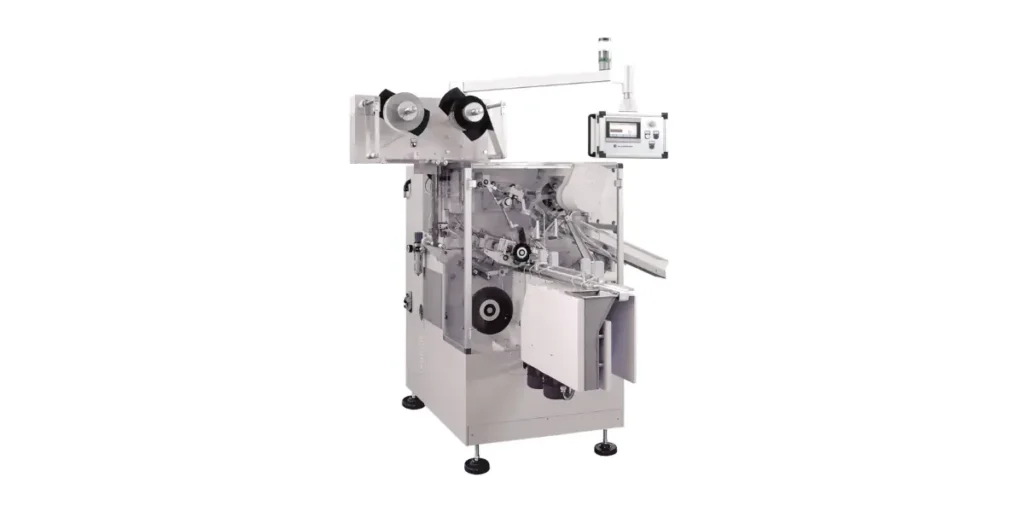

MC2

Modular intermittent motion Multi-style wrapping machine suitable for solid and filled chocolates whit flat bottom, moulded and enrobed in several wrapping styles such as: Double and Twist, Bunch, Envelope, Portfolio, Fancy, Vienna, Top and Side Twist.

The easy replacement of the folding group along with the servo drives and memorised set-up programs, make the change over of wrapping style and size parts quick and easy, with no need to access the internal mechanical parts.

The intermittent motion of the four-positions wrapping station and the continuous motion of the wrapping material unwinding system are synchronised by special paper grippers patented by M.C. Automations.

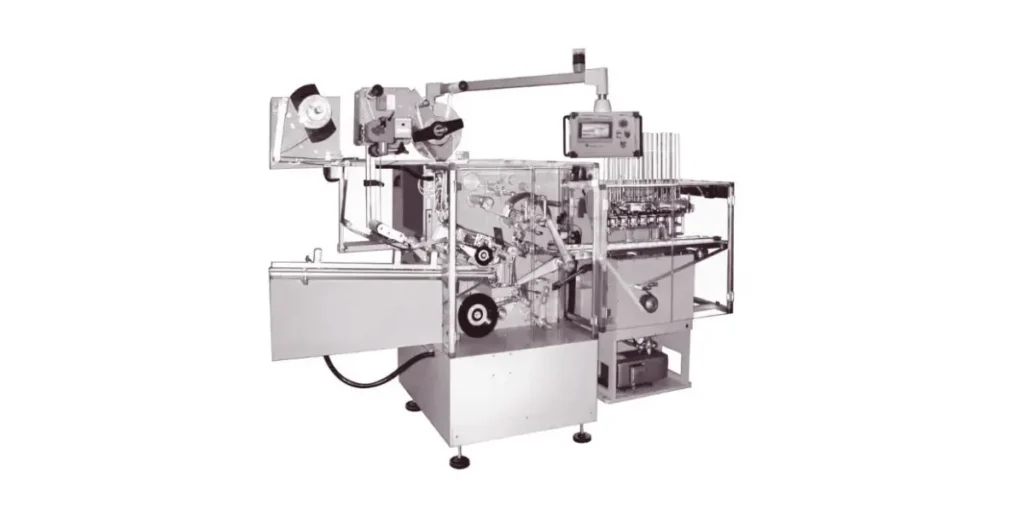

MC3

The most reliable machine for specific wrapping styles…

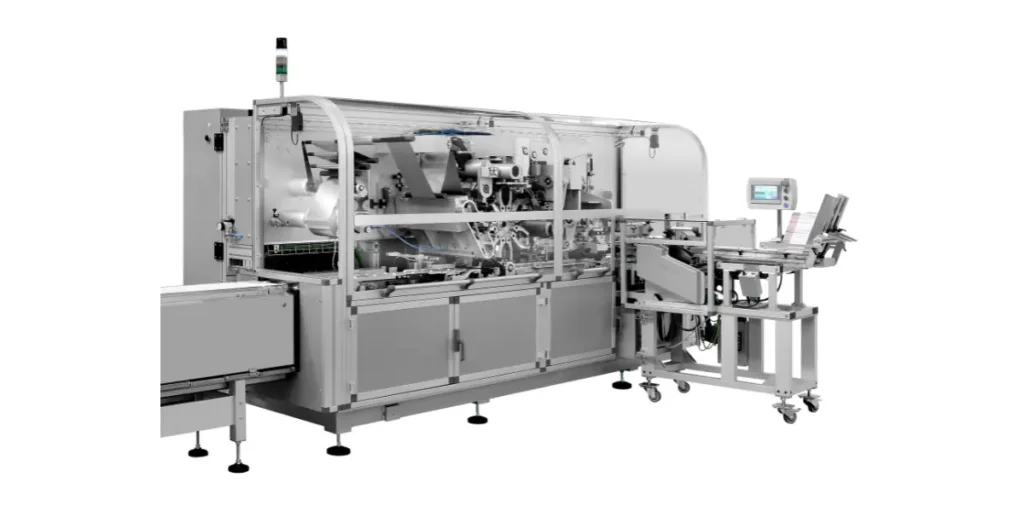

MC4TB

Two step machine for wrapping chocolate tablets and bars, first with aluminium with heat seal on three sides, second with an external wrap with paper or cardboard closed by hot melt.

Continuous motion servo driven in-feed belts to assure gentle and accurate product handling for both plain products and for products with inclusions.

The revolutionary rotary wheel cycles the products through six working stations, performing a tight wrap with perfect foil heat sealing and flat bottom folds.

The MC4TB’s superior mechanical and electronical configuration make it today’s fastest “tablet and bar” wrapper available on the market with speed up to 220 products per minute for 100 gr. tablet.

True cantilever design for full access to each working station, and machine lay-out with in-line product feeding and product discharge, offer important system design advantages and floor space saving.

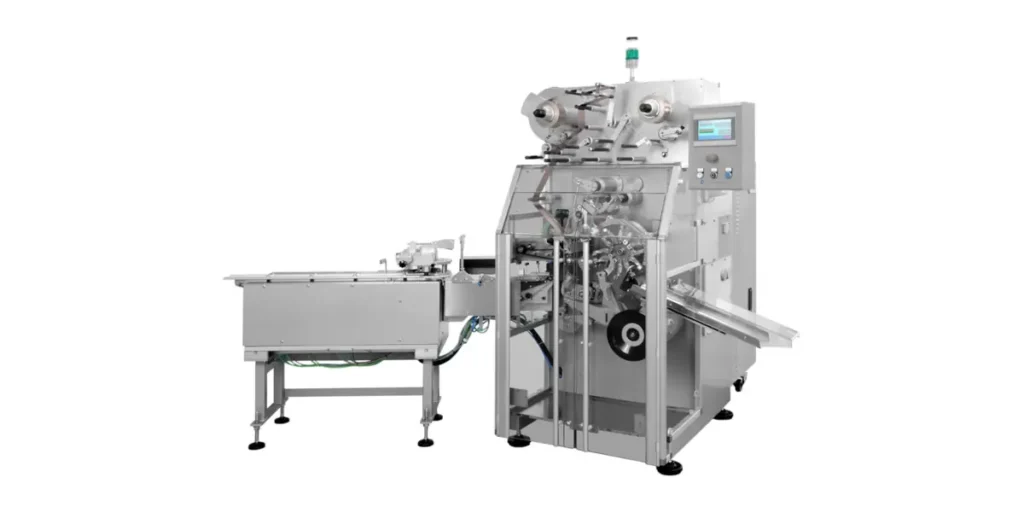

OMNIA⁶

Welcome to the model OMNIA6, the NEW GENERATION multistyle wrapping machine, fast and compact.
Perfect to be integrated in full automatic systems linked to the production thanks to the configuration with in-line feeding and reduced foot print.
Wrapping style change over is carried out in no longer than 60 minutes; it has never been faster in wrapping machines running such a speed.
Product size change overt takes from 20 to 40 minutes. The OMNIA6 offers the flexibility that all our customers need to switch the production in real time.

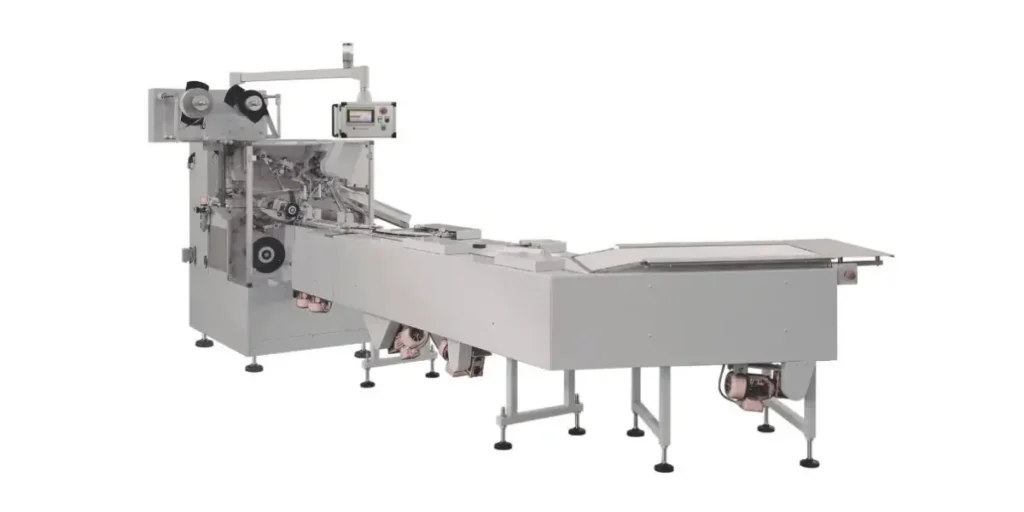

FEEDING SYSTEM

We have several systems for feeding and removing files…
